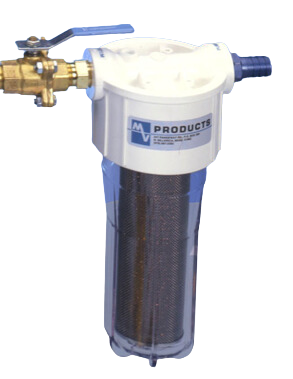

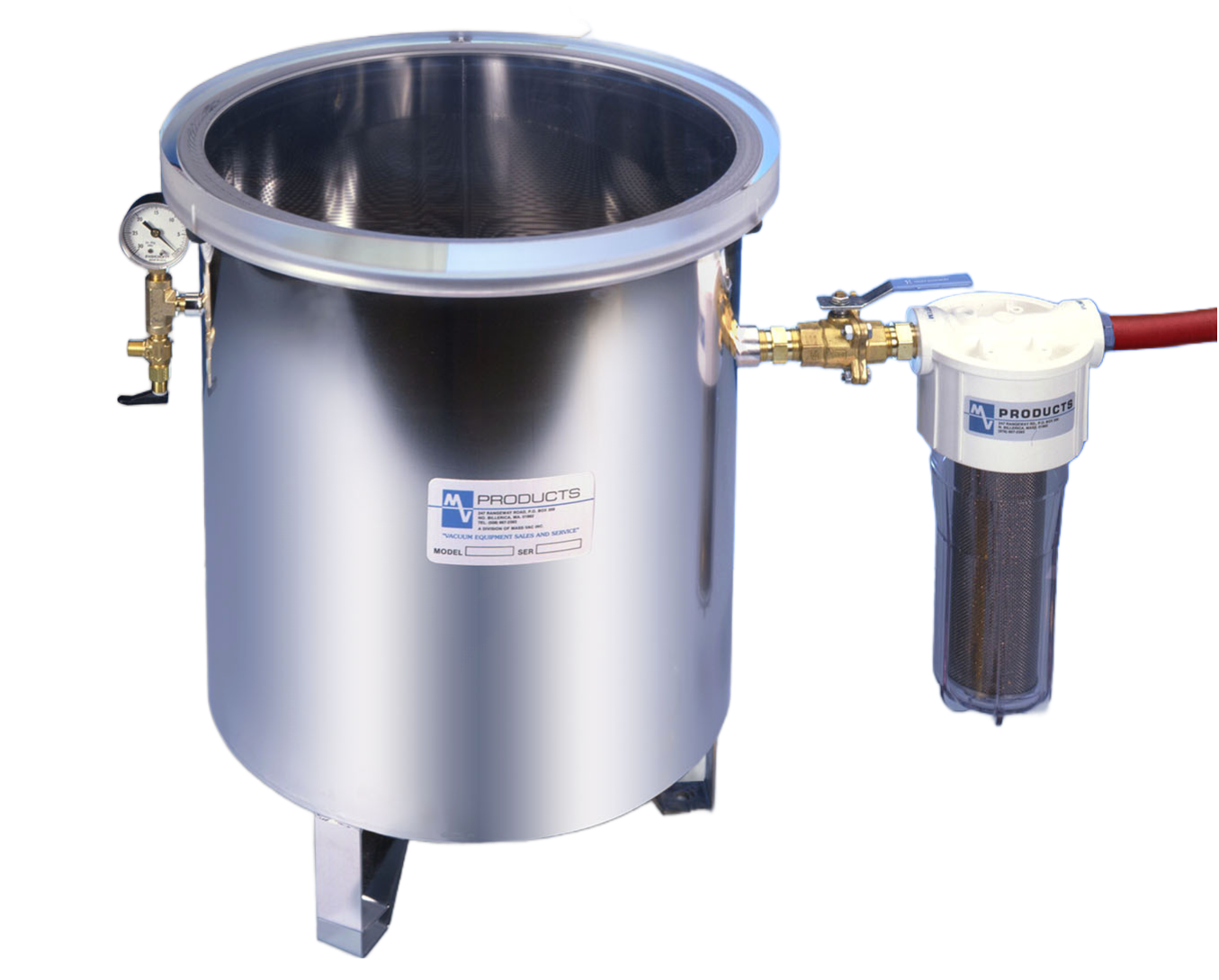

Visi-Trap® Vacuum Trap
Vacuum Inlet Trap with Transparent Sump
- Protects pumps from foreign materials
- Select inserts for trapping particles, water, oil or corrosive chemicals
- Transparent sump shows when to change insert
- Simple to maintain – change inserts without removing from the vacuum system
Sometimes your vacuum pump needs protection from the materials you’re pumping, and sometimes your vacuum system needs protection from the pump. The MV VISI-TRAP® takes care of both.
A transparent sump contains an insert that traps foreign particles and vapors, keeping them from getting where they shouldn’t be. The VISI-TRAP® traps corrosive chemicals before they can damage the pump. It also traps particles and oil vapors and reduces oil backstreaming.
Several interchangeable inserts are available. Choose from stainless steel gauze, copper gauze, molecular sieve, or Soda Lime.
Other filter media is available. We can also customize filters for your specific application. For more information on filter media and applications, visit the Vacuum Filter Elements page.
Specifiations
Installation Drawing
Filter Media
Ordering Information
Specifiations
| Construction | Polypropylene housing; styrene acrylonitrile sump – polypropylene sump also available |
| Sump Size | 300005: 4.5″ (114 mm) |
| 300010: 9.5″ (241 mm) | |
| Pump Size | 300005: 1-4 CFM (25-100 l/m) |
| 300010: 5-15 CFM (150-500 l/m) | |
| Filters | Stainless steel end caps and screens; Buna-N gaskets |
| Intake/Exhaust Ports | 3/4″ female pipe thread |
| Terminations | Hose termination; 25 mm or 40 mm NW flanges (installed if ordered with the trap) |
| Dimensions | |
| 300005 | Diameter: 5.5″ (140 mm) |
| Overall height: 7.9″ (200 mm) | |
| Requires 1.5″ space for sump removal | |
| 300010 | Diameter: 5.5″ (140 mm) |
| Overall height: 12.8″ (325 mm) | |
| Requires 1.5″ space for sump removal | |
| MV Products offers several interchangeable inserts: | |
| Type | Description |
| Copper gauze | Large surface area traps condensable particles and oil vapors |
| Stainless steel gauze | Same as copper gauze, but with added corrosion protection |
| Molecular sieve | Reduces mechanical pump back-streaming and traps water vapor |
| Soda Lime | Minimizes migration of corrosive chemicals and neutralizes acidic vapors |
| Activated charcoal | Removes organic vapors |
| PolyPro 2m | Traps high volumes of solids and particulates as small as 2 microns; available in 3 sizes |
| PolyPro 5m | Same as above |
| PolyPro 20m | Same as above |

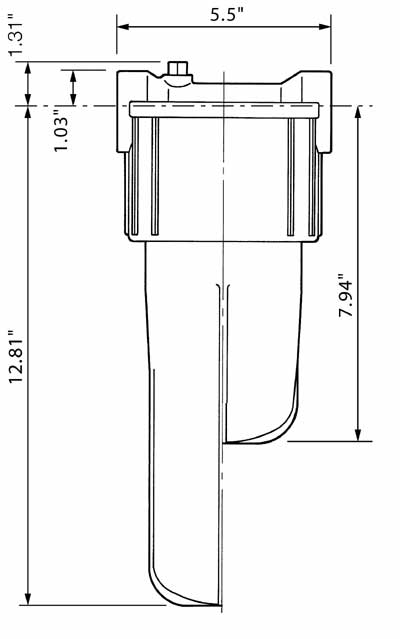

Installation Drawing
Filter Media
| Description | Part Number |
| Copper Gauze 4.5″ | 300905 |
| Copper Gauze 9.5″ | 300900 |
| Stainless Steel Gauze 4.5″ | 300915 |
| Stainless Steel Gauze 9.5″ | 300910 |
| Stainless Steel Gauze Wide Screen 4.5″ | 300916 |
| Stainless Steel Gauze Wide Screen 9.5″ | 300911 |
| Polypro 20 Micron 4.5″ | 400945 |
| Polypro 20 Micron 9.5″ | 400940 |
| Polypro 5 Micron 4.5″ | 400935 |
| Polypro 5 Micron 9.5″ | 400930 |
| Polypro 2 Micron 4.5″ | 400925 |
| Polypro 2 Micron 9.5″ | 400920 |
| Polypro 0.2 Micron 4.5″ | 400975 |
| Polypro 0.2 Micron 9.5″ | 400970 |
| Polypro 0.1 Micron 4.5″ | 400976 |
| Polypro 0.1 Micron 9.5″ | 400971 |
| Molecular Sieve 4.5″ | 300925 |
| Molecular Sieve 9.5″ | 300920 |
| Soda Lime 4.5″ | 300935 |
| Soda Lime 9.5″ | 300930 |
| Activated Charcoal 4.5″ | 300945 |
| Activated Charcoal 9.5″ | 300940 |
| Hydrated Lime 4.5″ | 300955 |
| Merc-Sorb 4.5″ | 300965 |
| Ammoniasorb 4.5″ | 300975 |
| Ammoniasorb 9.5″ | 300970 |
| Sulfatreat 4.5″ | 300985 |
| Potassium Permaganate 9.5″ | 300990 |
| Chlorosorb 4.5″ | 300999 |
| Activated Alumina 4.5″ | 400915 |
| Activated Alumina 9.5″ | 400910 |
| Microfiberglass Coalescing | 360915 |
Ordering Information
| ORDERING INFORMATION | ||
| Description | Part Number 4.5″ Size | Part Number 9.5″ Size |
| VISITRAP with sump, cover, and 3/4″ female pipe thread connections. Does not include filter element. | 300005 | 300010 |
| VISITRAP with copper gauze filter element | 300105 | 300100 |
| with stainless steel gauze filter element | 300205 | 300200 |
| with molecular sieve filter element | 300305 | 300300 |
| with Soda Lime filter element | 300405 | 300400 |
| with activated charcoal filter element | 300505 | 300500 |
| with PolyPro 2 filter element | 300615 | 300610 |
| with PolyPro 5 filter element | 300625 | 300620 |
| with PolyPro 20 filter element | 300635 | 300630 |
| Replacement sump only | 300725 | 300720 |
| Replacement filter elements (Quantity discounts for ten or more) | Refer to chart below for part numbers | |
| Terminations: (Two are required – if ordered with VisiTrap, they will be factory installed) | ||
| Hose termination 3/4″ | 301075 | 301075 |
| NW 25 x 3/4″ | 301025 | 301025 |
| NW 40 x 3/4″ | 301040 | 301040 |
| Accessories: | ||
| Dial gauge (0-30″ Hg) | 301200 | 301200 |
| Vent valve | 301300 | 301300 |
| Dial gauge and vent valve preassembled | 301400 | 301400 |
